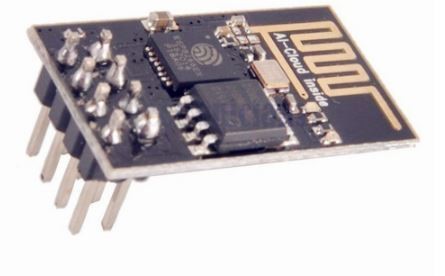

Simple ESP8266
Product Details
ESP8266 module provides Wifi connectivity in a small footprint which is very good for IOT implementation.
- Interface : Serial UART + AT commands
- Input supply : 3.3V (3.0V to 3.6V)
- Current requirement : 80mA typical, 120mA peak
- Wifi : 802.11 b/g/n as AP, STA, or AP+STA
- Dimensions: 25 x 15 x 12mm (default with Pin Header), 25 x 15 x 3mm (Pin header removed)
- Weight: 2g
