Recommended for wearable designs and IOT.

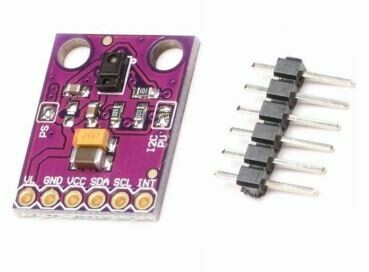

This is a RGB intensity and Gesture Sensor, a small breakout board with a built in sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand.

Built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. Broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each detector has a detection range of 4 to 8 inches (10 to 20 cm).

Features:

• Operational Voltage: 3.3V
• Ambient Light & RGB Color Sensing
• Proximity Sensing
• Gesture Detection
• Operating Range: 4-8in (10-20cm)
• I2C Interface (I2C Address: 0x39)
