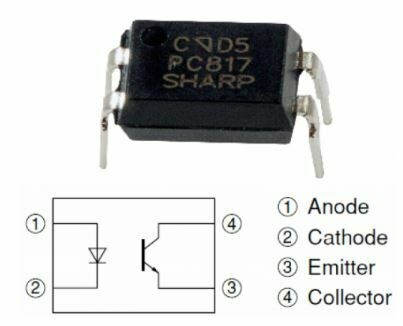

Photocoupler PC817
Product Details
Used to electronically isolate your circuits to protect low voltage circuit from high voltages.
Isolation withstands up to 2kV
Diode reverse voltage Vr : 6V Max
Diode forward current If : 50mA Max
Breakdown forward voltage BVceo: 80V
Breakdown reverse voltage BVeco: 5V
Diode forward voltage Vf : 1.4V Max
Dark current Ice Ic(dark): less than 100nA
