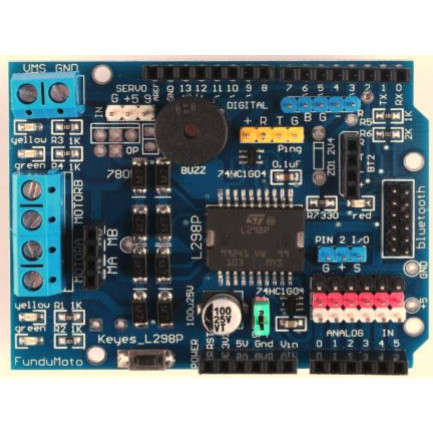

L298P Shield DC motor drives using high-power motor driver chip dedicated L298P, can drive DC motors, stepper motor with drive current up to 2A, motor output protected with Schottky diodes.

1 logical part of the input voltage VD: 5V
2.-driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
3 logical part of the work current Iss: <36mA
4.-driven part of the operating current Io: <2A
5 maximum power dissipation: 25W (T = 75 Celsius)
6. control signal input level: High 2.3V low -0.3V
7 Working temperature: -25 + 130 Celsius
8 hardware interface: 5.0mm pitch terminal
9 belt clip and can be controlled via front row access signal
10 Pin occupancy: D4 ~ D7 direct drive motor
11 Size: 68 * 53mm
