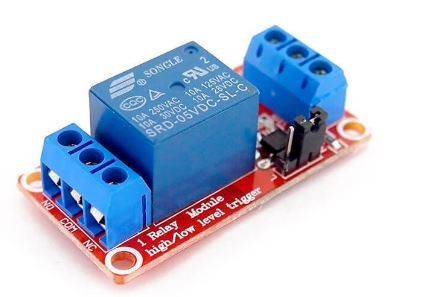

Isolated Relay module
Product Details
Circuit is designed with optocoupler isolation, giving stable performance for trigger signals. The module can be set to high or low trigger by the jumper on board. There are 2 indicator LEDs on board, green for power and red for trigger. You can easily connect your sensor / output to the board with the screw terminals.
Input Voltage: 5V Relay
Rating: DC 30V / AC 250V 10A
Dimensions: 50 x 26 x 19mm
Weight: 17g
