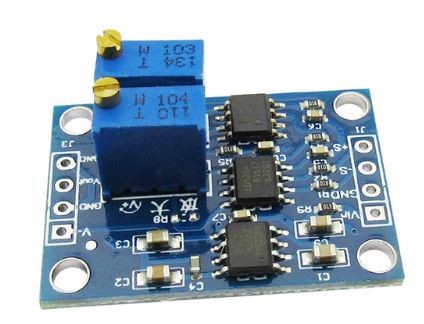

High Precision uV / mV Voltage Amplifier Small Signal Instrumentation Amplifier

Can amplify uV, mV voltage. Magnification 1.5-1000 magnification, adjustable. High precision, low offset, better linearity. Adjustable zero to improve accuracy. Can be used for AC, DC signal amplification.

Product parameters:
Input voltage: 3-12VDC
magnification: 1.5-1000 times adjustable
zero adjustable
Signal input voltage: 100uV - 300mV
Signal output range: ± (Vin-2V)
Negative voltage output: Smaller than -Vin. The greater the load power, the greater the negative voltage drop.
Offset voltage: 50μV.
Input bias current: 1.0nA (max).
Common mode rejection ratio: 100 dB
Offset voltage drift: 0.6μV / ℃ (maximum).
Stability: 2μV / month maximum
Size: 32 * 22mm Weight: 4g
