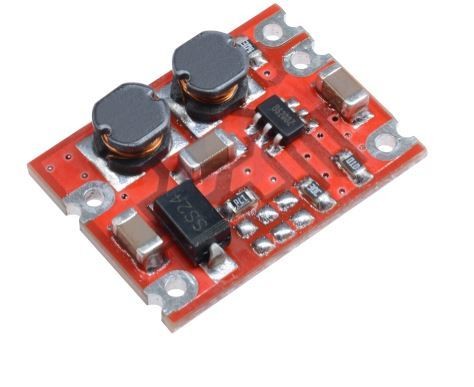

DC-DC Boost Buck (step up and down) with En convertor module
Product Details
DC to DC automatic boost buck with enable pin switching convertor module.
This module will hold output voltage in regulation even with lower input voltage than Vout, which is very useful in single lithium cell power source design.
Apply Vin to En to turn on module.
Small size excellent for IOT implementation.
Input Voltage : 2V - 15V
Output Voltage : 3.3V +- 0.1V Fixed or 5V +- 0.1V Fixed (please select)
Output Current : 600mA
Quiescent Current : 200uA
Efficiency : 70%
Ripple : +-50mV
Switching freq : 1.2Mhz
Dimension : 19mm * 14mm * 4mm
