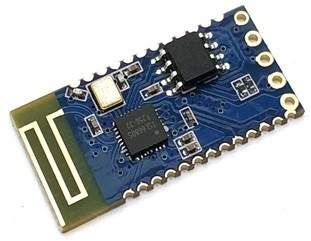

Bluetooth (IOS, Android, and Windows)
Product Details
System using IOS, Android and Windows will be able to connect to this Bluetooth module.
Very small dimension and power efficient which is very good for IOT implementation.
• Supply voltage : 1.8V to 3.3V
• Current : 5mA broadcast, 12mA SPP mode
• Default Pairing code: 1234
• Interface : Serial UART
• Bluetooth : SPP 3.0 + BLE 4.2
• working frequency band 2.4GHZ
• modulation mode GFSK
• maximum transmission power 5db
• Receiver sensitivity: -90dbm
• Transmission distance: 20 meters
• Dimension : 19.6 * 14.94 * 1.8 mm (length, width, height)
