Arduino Due

SKU 00041

SGD 40.00

In stock

Quantity:

Save this product for later

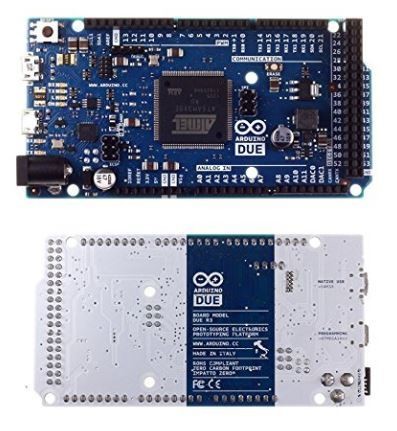

Arduino Due

Product Details

Note: This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

The main differences are:

32 bits at a clock can process 32 bits of data.
CPU clock frequency of 84Mhz
96 SRAM KBytes
512 Flash KBytes
DMA controller, can release the processing load on the CPU to handle other computing processes.

Features

Microcontroller: AT91SAM3X8E
Operating Voltage: 3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-16V
Digital I/O Pins: 54 (of which 12 provide PWM output)
Analog Input Pins: 12 Analog
Outputs Pins: 2 (DAC)
Total DC Output Current on all I/O lines: 130 mA
DC Current for 3.3V Pin: 800 mA
DC Current for 5V Pin: 800 mA
Flash Memory: 512 KB all available for the user applications
SRAM: 96 KB (two banks: 64KB and 32KB)
Clock Speed: 84 MHz
