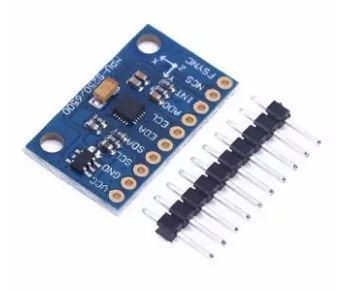

This module can be use in application like Electronic compass, IMU (Inertial Measurement Unit), Navigation, Wearable IOT device.

• Digital-output 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
• Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
• Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
• Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometer, gyroscope, and compass
• VDD Supply voltage range of 2.4 - 3.46v; VLOGIC of 1.8v±5% or VDD
• Gyro operating current: 3.6mA (full power, gyro at all rates)
• Gyro + Accel operating current: 3.8mA (full power, gyro at all rates, accel at 1kHz sample rate)
• Gyro + Accel + Compass + DMP operating current: 4.25mA (full power, gyro at all rates, accel at 1kHz sample rate, compass at 8Hz rate)
• Accel low power mode operating current: 10uA at 1Hz, 20uA at 5Hz, 70uA at 20Hz, 140uA at 40Hz
• Full Chip Idle Mode Supply Current: 8µA
• 400kHz Fast Mode I2C serial host interface
• On-chip timing generator with ±1% frequency variation over full temperature range
• 10,000g shock tolerant
• I2C Pullup Resistors populated on board
• Tri-axis compass with a full scale range of ±4800µT
