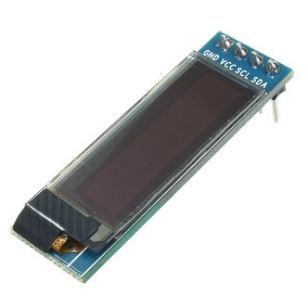

12832 OLED display module
Product Details
White OLED display, no need backlight, self-illumination,
The display performance is better than the traditional LCD display, also lower consumption.
Very good for IOT implementation due to low current and small footprint.
Driver IC: SSD1306
Size: 0.91 inch OLED
module Dimension : 38mm * 12mm * 4mm (without header)
Resolution: 128 x 32
I2C interface
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
